Part Number

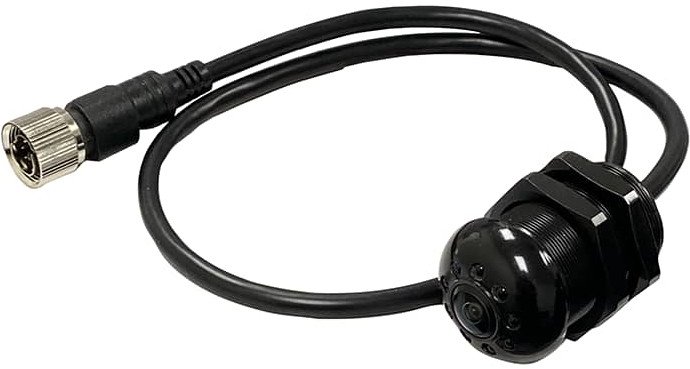

C1B146
Image Device
1/3" SHARP
CCD TV System
PAL NTSC
Effective Pixels
976*582pixels / 976*494 pixels
Sensing Area
4.9 mm (H) x 3.7 mm (V)
Scanning System
2:1 Interlace
Sync. System
Internal
Resolution
600 TV Lines
Horizontal Sync. Frequency
15.63 kHz / 15.73 kHz
Vertical Sync. Frequency
50 Hz / 60 Hz
Minimum Illumination
0.1 Lux (day), 0 Lux (with IR)
Microphone
Yes
Video Output
1.0Vp-p, 75Ohm
Gamma Consumption
0.45 AGC: Auto
S/N Ratio
Better than 48 dB
White Balance
Auto
Electronic Shutter
1/60 (NTSC) / 1/50 (PAL) ~ 1/100,000 Seconds
BLC
Auto
Current Consumption
Day: 12V / 88mA; Night: 12V / 128mA; Max.: 535mA
Power Supply
DC 12 V Connection: 6P
Automatic heating
Optional (starts when temperature gets lower than 1°C) (34°F)
Anti-vibration
5 g
Operating Temperature
-20°C~70°C, RH 95% MAX.
Storage Temperature
-40°C~80°C, RH 95% MAX.
Lens
f = 3.6 mm / 2.8 mm / 1.7N mm F = 2.0
Lens Angle
150° Diagonal
Product specifications subject to change on 60-day notice.
