Frame Mount, 120 FOV, CVBS, IR LED, 6p mini-din, Non Mirror, Black, IP 68K Waterproof, LYTX Hub Compatible
Frame Mount, 120 FOV, CVBS, IR LED, 6p mini-din, Non Mirror, Black, IP 68K Waterproof, LYTX Hub Compatible
Frame Mount, 120 FOV, CVBS, IR LED, 6p mini-din, Non Mirror, Black, IP 68K Waterproof, LYTX Hub Compatible

C1F126

Cameras

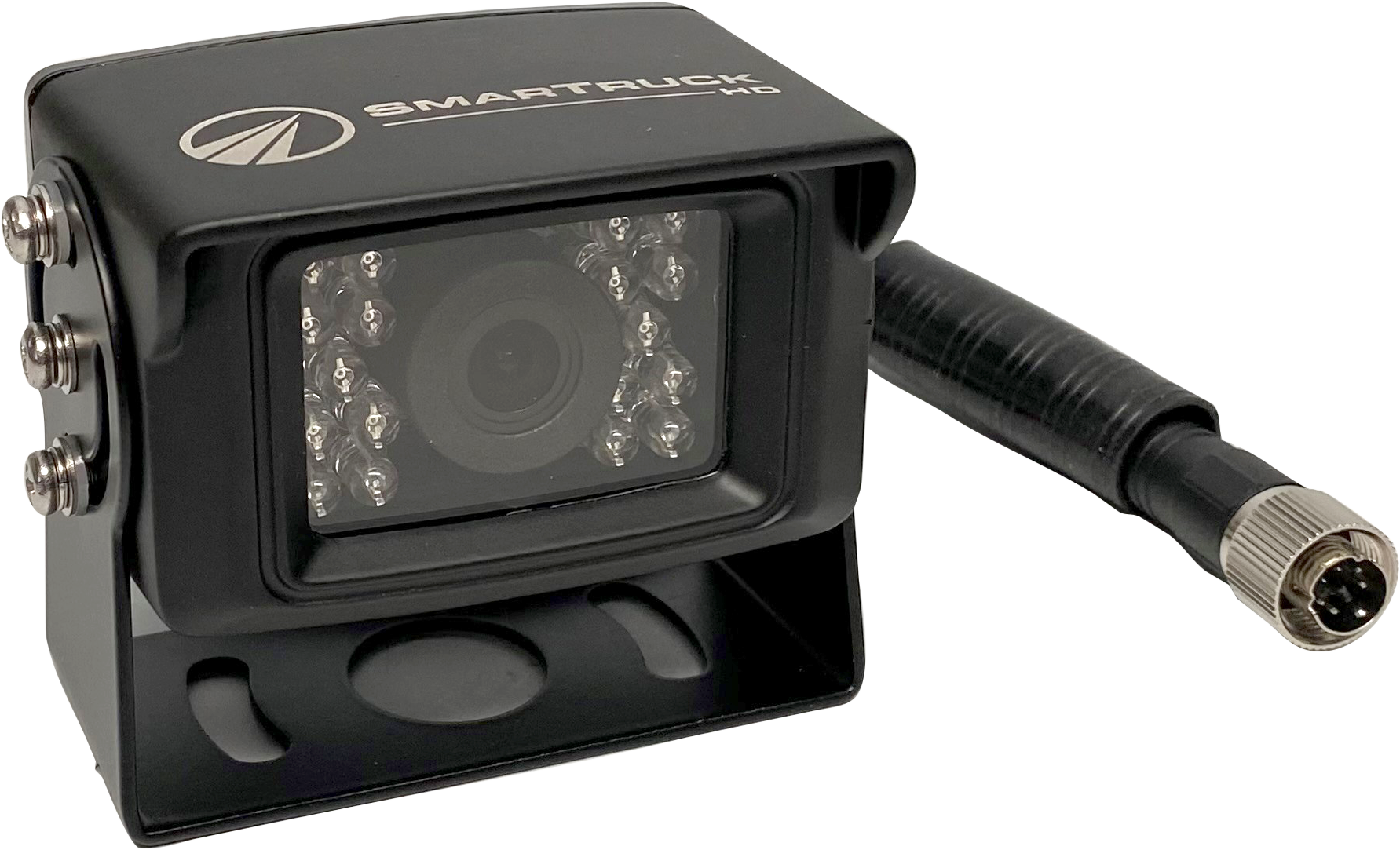

The high-performance SmarTruck HD Part No C1F126 rearview high-performance camera is equipped with a high- resolution 1/3" CMOS imaging sensor that delivers a 700 TV lines resolution and an ultra-wide 120° diagonal field-of-view. Eighteen extra-bright IR LED's extend visibility in those "0" Lux video applications. This LYTX Hub Compatible-camera is weatherproof with an IP68 rating and is designed to be reliable in all camera applications with a die-cast housing.

The C1F126 replaces the following parts:

CA008
$37059
Product Specifications
Download PDF
Part No.
C1F126
Image Device
1/3" CMOS
TV System
NTSC/PAL
Effective Pixels
976(H) x 592(V)
Sensing Area
4.880mm*3.670mm
Sync System
Internal
Resolution
700 TVL
Minimum Illumination
0.1 Lux (day) 0.0 Lux (night)
Microphone
No
IR LED Qty
18PCS
Video Output
1.0 Vp-p/75 Ohm
Scanning System
Interlace
AGC
Auto
Signal to noise ratio
Better than 48dB
White balance
Auto
Gamma Consumption
0.45
Electronic Shutter
Auto
Backlight Compensation
Auto
Power Supply
DC12V
Lens
2.8mm
Lens Angle
120° Diagonal
Current Drain
65±5mA
Operating Temperature
'-20°C~70°C, RH 95% MAX
Storage Temperature
'-30°C~80°C, RH 95% MAX
Product specifications subject to change on 60-day notice.
Features
  • High Resolution Sensor 1/3" (CMOS) Complementary Metal-Oxide-Semiconductor
  • LYTX Hub Compatible
  • 120° Diagonal Field of View
  • Metal Die-Cast Housing
  • Electronic Auto Iris Control
  • 18 Infra-Red (IR) Light Emitting Diodes (LED)
  • Auto White Balance
  • Back-Light Compensation (BLC)
  • Vibration Rating = 10G
  • "T" Slot-Adjustable Monitor Mount
  • 18 Extra-Brite - (NIR) Light-Emitting Diodes (LED)
