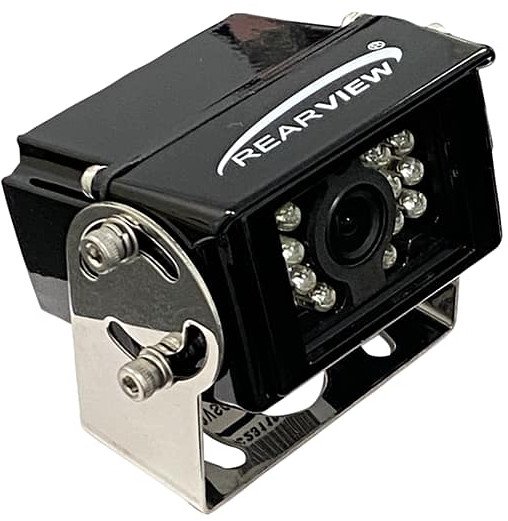

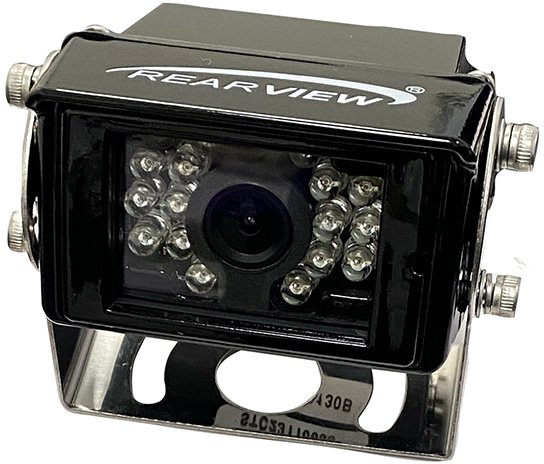

Part No
C2F134PAL
Image Sensor
1/2.9" SONY CMOS Image Sensor
Total Pixels
2000(H) X 1121(V)
Number of effective pixels
1984(H) X 1105(V)
Video Signal System
PAL
Visual Resolution
800TVL
Video Output
CVBS, Composite 1.0Vp-p / 75 ohm
S/N Ratio
50dB or more (AGC OFF)
Min. Illumination
0 Lux (With IR LED)
Lens
2.9mm / F2.3 D(127°)
Function Mechanical
Day & Night (IR filter changeable). Audio , Normal & mirror , Auto-Heating
Power Input range
DC12V~30V
Power Consumption (DC 12V)
3.5Watt / Heater & IR ON (290mA) , IR OFF Max (90mA)
Operating Temp
-30°C ~ +85°C
Storage Temp
-40°C ~ +85°C
Size
69(W) x 42(H) x 57(D)/mm
Weight
Approx. 0.37Kg
Housing Color
Black
LED Angle
850Nano IR LED * 5pcs 90°
Logo
SmarTruckHD
Connector
4P Screw
Bracket Mounting Hole
6.5mm(SUS)
Product specifications subject to change on 60-day notice.
