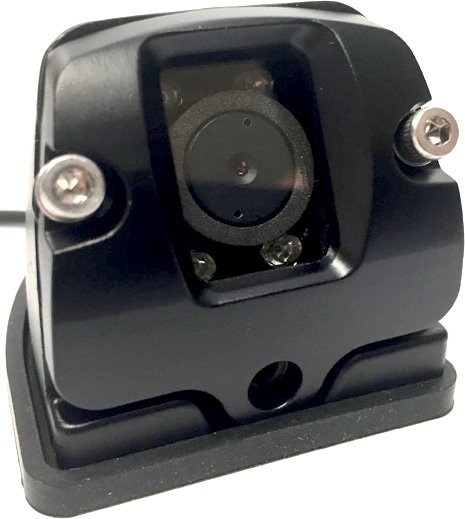

Surface Mount, 120 FOV, CVBS, IR LED, 6p mini-din, Non Mirror, Black, IP 69K Waterproof, Left Side
Surface Mount, 120 FOV, CVBS, IR LED, 6p mini-din, Non Mirror, Black, IP 69K Waterproof, Left Side
Surface Mount, 120 FOV, CVBS, IR LED, 6p mini-din, Non Mirror, Black, IP 69K Waterproof, Left Side

C2S126L

Cameras
Surface Mount, 120 FOV, CVBS, IR LED, 6p mini-din, Mirror, Black, IP 69K Waterproof, Left Side

The C2S126L replaces the following parts:

CA010 RVHD-CC45LB
$24128
Product Specifications
Download PDF
Part No.
C2S126L
Image Sensor
1/3" SONY SUPER HAD COLOR CCD
Effective Pixels
NTSC : 410K, PAL : 470K
Synchronization System
Internal
Scanning System
640 TV Lines
S/N Ratio
More Than 48 dB
Min. Illumination
0 Lux
Video Out
75 ohm 1Vp-p Composite Signal
BLC
Auto
IRIS
Electronic Auto IRIS
Lens (Default)
(Default) F=2.0/f=3.0mm Fixed
Operating Voltage Range
9V ~ 15V
Operating Temperature
-30C ~ 85C
Weight
0.18Kg
Dimensions (mm)
45(W) X 61 (D) X 41 (H)
Product specifications subject to change on 60-day notice.
Features
  • 1/3" SONY Super HAD II Interline Transfer Sensor
  • 120° degree (Diagonal) FOV High Performance
  • Metal die cast housing
  • Hardened/Tempered Glass Lens Cover
  • 4 High Intensity IR LEDs with Auto On Feature
  • 640 TV line resolution
  • 6Pminidin Camera Connector
  • Back-Light Compensation
  • Vibration Rating - 30G
  • 100% Waterproof - IP69K
  • 5-Year Warranty
