Frame Mount, 156 FOV, AHD, IR LED, 6p mini-din, Heater, Mirror, Black, IP 69K Waterproof
Frame Mount, 156 FOV, AHD, IR LED, 6p mini-din, Heater, Mirror, Black, IP 69K Waterproof
Frame Mount, 156 FOV, AHD, IR LED, 6p mini-din, Heater, Mirror, Black, IP 69K Waterproof

C4F156HD-XL

Cameras

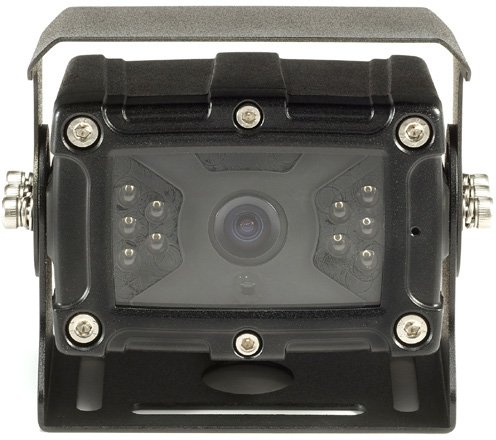

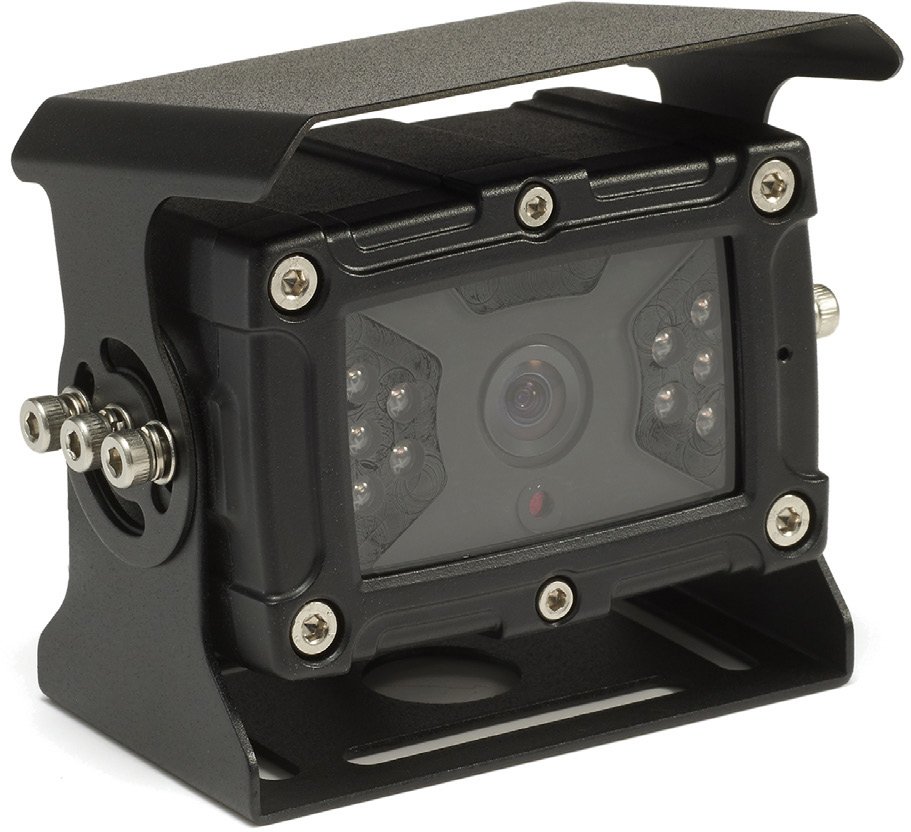

The high-performance Part No C4F156HD-XL camera delivers a sharp wide-angle image to the driver and provides outstanding visibility. Ten high ntensity infra-red LED's are twice as powerful as most cameras on the market. (50 ft) This camera is IP69K rated which means it is waterproof under severe conditions. The camera includes stainless bracket and mounting hardware.

The C4F156HD-XL replaces the following parts:

CA041AHD RVHD-VT99G40-08140Z
$32896
Product Specifications
Download PDF
SmarTruck Part No
C4F156HD-XL
Image Sensor
1/2.9" SONY CMOS Image Sensor
Total Pixels
2000(H) X 1121(V)
Number of effective pixels
1984(H) X 1105(V)
Video Signal System
AHD 1080p @ 30fps
Visual Resolution
1080P
Video Output
AHD 2.0
S/N Ratio
50dB or more (AGC OFF)
Minimum Illumination
0 Lux (With IR LED)
Lens
2.45mm / F2.3 D(145°)
Function
Mechanical Day & Night (IR filter changeable). Audio, Normal & mirror
Power Input range
DC12V~ 30V
Power Consumption (DC 12V)
2.8Watt / IR ON Max (230mA) , IR OFF Max (90mA)
Operating Temp
-30°C ~ +85°C
Storage Temp
-40°C ~ +85°C
Size
85(W) x 57.5(H) x 50(D)mm
Weight Approx.
0.5Kg
Housing Color
Black
LED Angle
940Nano IR LED * 10pcs 60°
Logo
SmarTruckHD
Connector
6P Screw Lock
Bracket Mounting Hole
Standard. (Aluminum)
Product specifications subject to change on 60-day notice.
Features
  • AHD 1080p @ 30fps
  • Lens 2.45mm / F2.3 D(145º)
  • 1/2.9" SONY CMOS Image Sensor
  • D-WDR (Wide Dynamic range)
  • LED Auto On/Off CDS Sensor
  • True Day & Night (IR filter changeable)
  • Waterproof (IP69K)
  • 10 x Infrared LED & 1 x CDS Sensor
  • Built-in Microphone
  • Normal & Mirror
  • Die-Cast Aluminum Housing
