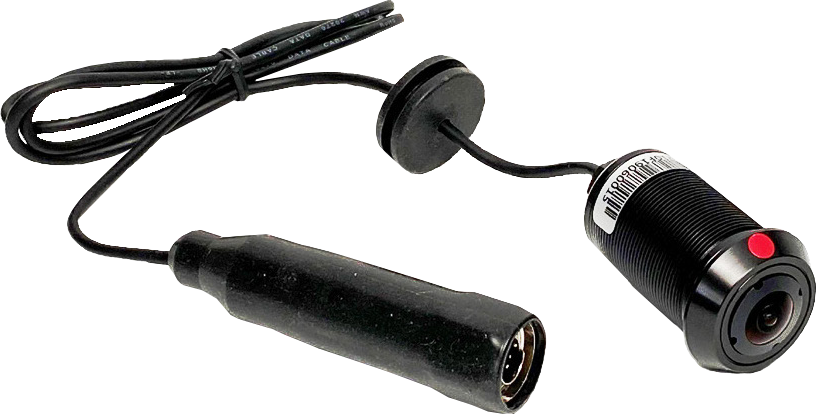

Part No
C5B214
Operating Voltage Range
DC12~24VDC
Current Consumption
120mA @12V
Power Consumption
Max. 1.5W@12V
Imaging Device
1/3.2" SONY CMOS
Resolution
1280 x 960 (1.23M pixels)
Visual Resolution
800 TV Lines
Lens Focal Length
1.2mm/F=2.4
FOV (Field of View)
210°
View Angle (FOV)
180° (Horizontal) x 210° (Diagonal) x 125° (Vertical)
Lens Coating
Anti-Glare Glass Coating
Signal to Noise Ratio
min 48dB (AGC off)
Video Output
75 Ohm; 1V (P-P)
Required Illumination
0.01 Lux
Image Orientation
Mirror Image
Weight
75g/2.64oz
Interface Connector
Threaded 6Pin MiniDIN (Male)
Length of Interface Cable
39 inches
Overall Dimensions
29.5(ø).x 56.5mm (L) / 1.16" (ø) x 2.22" (L)
Housing Material
Aluminum
Finish
Black Anodized
Shock Rating
30 G
Vibration Rating
30G @ 50Hz
Connector IP Rating
IP68
Camera IP Rating
IP69K
Operating Temperature
-30°C ~ 70°C/ -22°F ~ 158°F
Storage Temperature
-40°C ~ 80°C/ -40°F ~ 176°F
STANDARDS
RoHS, EMC, E-MARK, FCC
Product specifications subject to change on 60-day notice.
