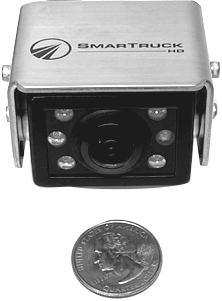

Part No
C5F176AHD
IR Night Vision
6 pcs extra bright LED's
Operating Voltage Range
DC12~24VDC
Current Consumption
120mA @12V (LED's On)
Power Consumption
Max. 1.5W@12V
Imaging Device
1/3.2" AHD Color CMOS
Resolution
1280 x 960 (1.23M pixels)
Visual Resolution
800 TV Lines
Lens Focal Length
1.2mm/F=2.4
FOV (Field of View)
170°
View Angle (FOV)
147° (Horizontal) x 170° (Diagonal) x 87° (Vertical)
Lens Coating
Anti-Glare Glass Coating
Signal to Noise Ratio
min 48dB (AGC off)
Video Output
75 Ohm; 1V (P-P)
Audio
High Sensitive C-mic
Required Illumination
0.01 Lux
Image Orientation
Mirror Image
Weight
140.5g/4.96oz
Interface Connector
Threaded 6Pin MiniDIN (Male)
Length of Interface Cable
39 inches
Overall Dimensions
41 x 29 x 45.5 mm / 1.61" x 1.14" x 1.79" (Without Sunshield & Bracket)
Housing Material
Aluminum
Finish
Black Anodized
Shock Rating
30 G
Vibration Rating
30G @ 50Hz
Connector IP Rating
IP68
Camera IP Rating
IP69K
Operating Temperature
-30°C ~ 60°C/ -22°F ~ 140°F
STANDARDS
RoHS, EMC, E-MARK, FCC
Product specifications subject to change on 60-day notice.
