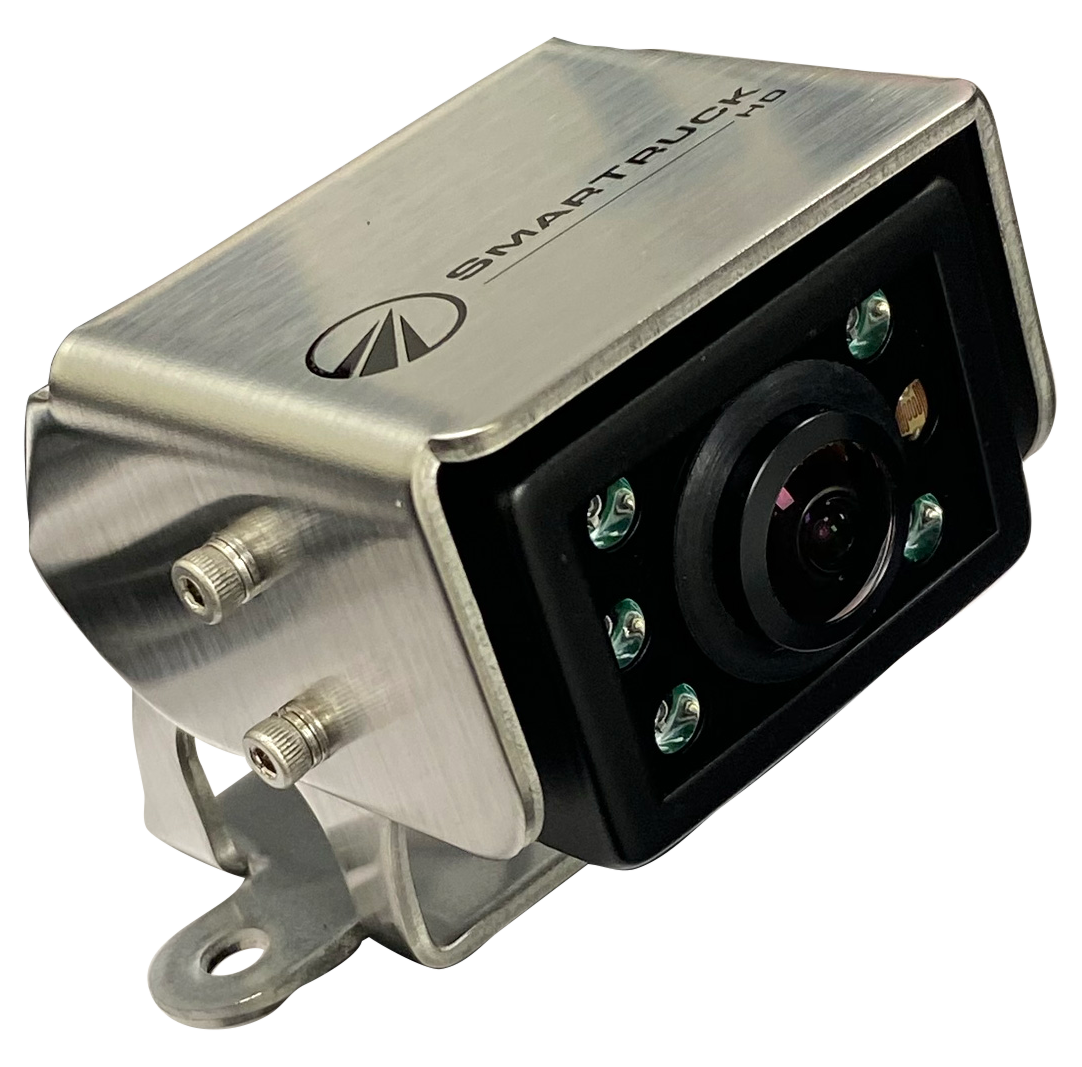

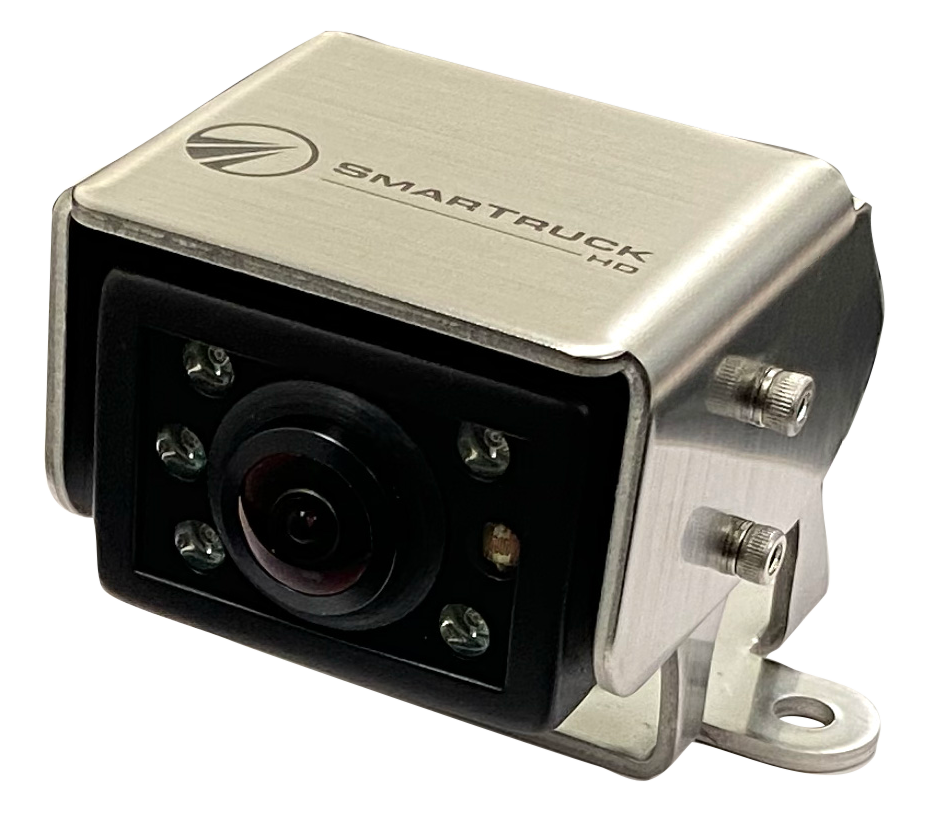

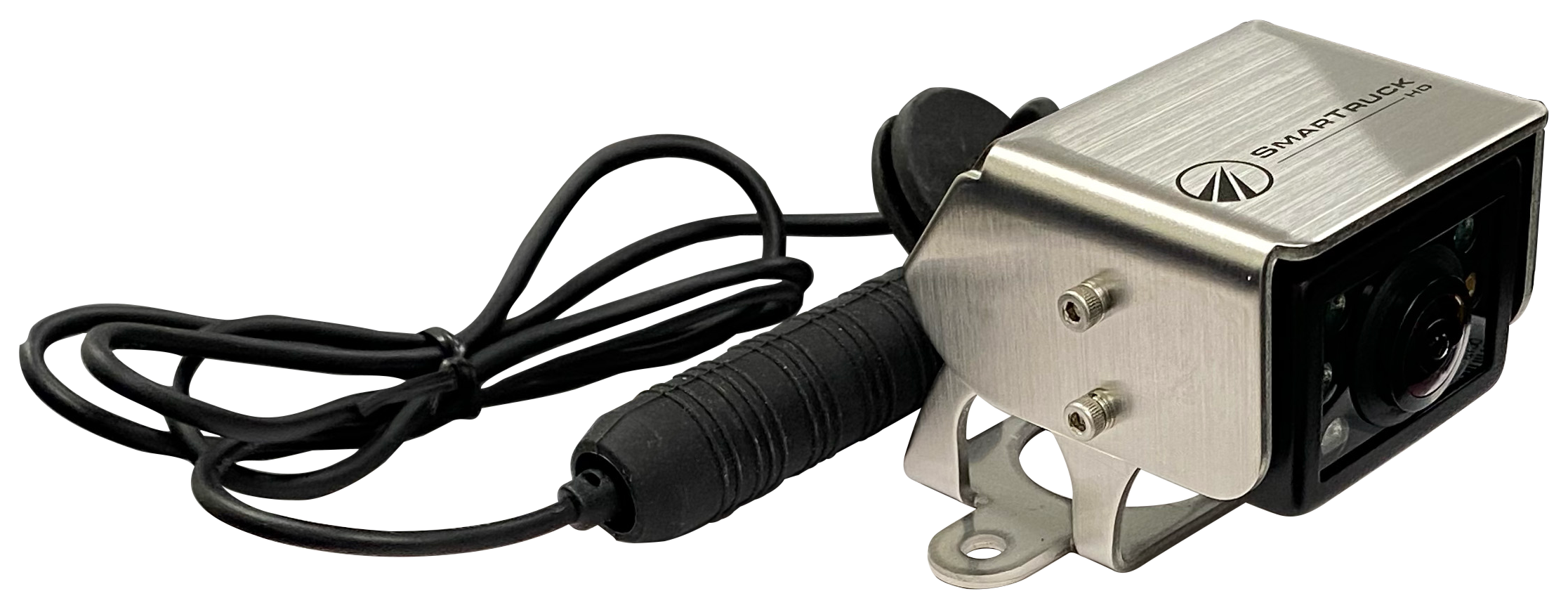

Frame Mount, 210 FOV, CVBS, IR LED, 6p mini-din, Mirror, Black, IP 69K Waterproof, Stainless Steel Bracket

C5F216SS

Cameras

Frame Mount, 210 FOV, CVBS, IR LED, 6p mini-din, Mirror, Black, IP 69K Waterproof, Stainless Steel Bracket

The C5F216SS replaces the following parts:

CA035 RVHD-MTC210P4

Added to Cart

$31668

Product Specifications

Download PDF

Part No.

C5F216SS

Image Device

1/3” Super HAD Color CCD

TV System

NTSC/PAL

Effective Pixels

976(H) x 592(V)

Sensing Area

4.880mm*3.670mm

Sync System

Internal

Resolution

640 TVL

Minimum Illumination

0.05 Lux (night)

Microphone

Yes

IR LED Qty

Video Output

1.0 Vp-p/75 Ohm

Scanning System

Interlace

AGC

Auto

Signal to noise ratio

Better than 48dB

White balance

Auto

Gamma Consumption

0.45

Electronic Shutter

Auto

Backlight Compensation

Auto

Power Supply

DC12V

Input Voltage

12V - 24V

Lens

1.2mm

Lens Angle

210° Diagonal

Operating Temperature

-30°C~85°C

Product specifications subject to change on 60-day notice.

Features

High Resolution Sensor 1/3” Super HAD Color CCD
Ultra wide 210° Diagonal Field of View
NTSC / PAL
Built-In Rear-Mounted Microphone
Metal Die-Cast Housing
640 TV Lines of Resolution
Electronic Auto Iris Control
5 Infra-Red (IR) Light Emitting Diodes (LED)
Auto White Balance
Waterproof Rating: IP69K
Easy Switching between Normal and Mirror Viewing
