SmarTruckHD 7" Color LCD Display, AHD, 4 Port, Quad Viewing, Non Touchscreen, Recording, OSD Lock, Speaker, Polymer Housing, Sun Shield, Custom Triggers, Power Harness, 6p mini-din, T-Slot and Cradle Mount
SmarTruckHD 7" Color LCD Display, AHD, 4 Port, Quad Viewing, Non Touchscreen, Recording, OSD Lock, Speaker, Polymer Housing, Sun Shield, Custom Triggers, Power Harness, 6p mini-din, T-Slot and Cradle Mount
SmarTruckHD 7" Color LCD Display, AHD, 4 Port, Quad Viewing, Non Touchscreen, Recording, OSD Lock, Speaker, Polymer Housing, Sun Shield, Custom Triggers, Power Harness, 6p mini-din, T-Slot and Cradle Mount
SmarTruckHD 7" Color LCD Display, AHD, 4 Port, Quad Viewing, Non Touchscreen, Recording, OSD Lock, Speaker, Polymer Housing, Sun Shield, Custom Triggers, Power Harness, 6p mini-din, T-Slot and Cradle Mount
SmarTruckHD 7" Color LCD Display, AHD, 4 Port, Quad Viewing, Non Touchscreen, Recording, OSD Lock, Speaker, Polymer Housing, Sun Shield, Custom Triggers, Power Harness, 6p mini-din, T-Slot and Cradle Mount

M174QHD

Monitors

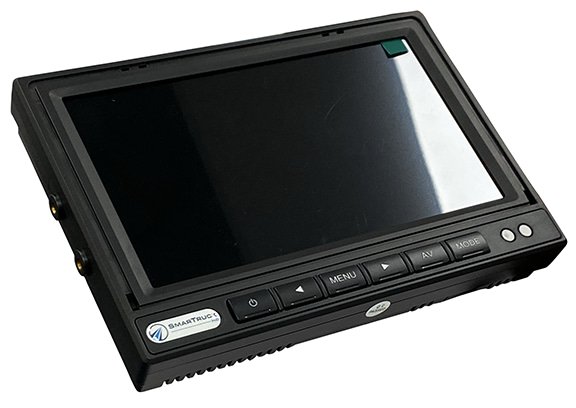

The SmarTruck HD Part No M174QHD monitor features the new LCD IPS panel providing a high resolution 7-inch AHD QUAD color display suitable for all vehicles. It incorporates features requested by some of our fleet customers and accommodates up to 4 cameras. A unique feature of this monitor is its intuitive programming design. Simply connect up to four cameras to the monitor and chose any one of 10 different multi-camera combinations. The combination chosen then becomes the default screen. That combination of cameras will be displayed on the screen until one of the four triggers are activated to provide a full-screen display of that desired camera. After the trigger voltage is released the default multi-camera screen reappears. Some additional features include: Expanded on-screen-display (OSD) control enables customized camera display and system useage, adjustable horizontal and vertical backing grid overlay, mirror/ normal switchable image, selectable user operation for seven languages, and multiple viewing options.
$50914
Product Specifications
Download PDF
Part No.
M174QHD
Monitor
7" High Resolution IPS Color Display
Input
4-camera input w/ 6P Power Harness
16:9
Color system
PAL/NTSC (auto switching)
Resolution
1024 W x 600H
Brightness
520cd/m²
Contrast
500:01:00
Power requirement
9~36V DC
Language
7 languages for selection
Power consumption
5W
Dimensions (mm)
188 (L) x 128 (W) x 29 (D) (MM)
Operating temperature
-30° to +70°C
Storage temperature
-40° to +85°C
Certificate
FCC, CE, EMC, ISO9001- 2008, E8
Product specifications subject to change on 60-day notice.
Features
  • Digital High Resolution 614,400 pixel picture
  • Adjustable horizontal and vertical backing grid
  • Accepts up to 4 cameras w/QUAD function
  • Auto-on when vehicle is placed in reverse
  • Electronic On-Screen-Display (OSD) Controls
  • Each Camera Auto-ON/OFF Discrete Trigger
  • "T" Slot and Cradle Monitor Mount
  • Simple and Intuitive Multi-Camera Programming
