7″ TFT Active Matrix Color, LED Backlight, CVBS, 5 Port, Quad Viewing, Non Touchscreen, Recording, Auto Dimming, OSD Lock, Speaker, Aluminum Housing, Sun Shield, Custom Triggers, Power Harness, 6p mini-din, Cradle Mount, NTSC/PAL
7″ TFT Active Matrix Color, LED Backlight, CVBS, 5 Port, Quad Viewing, Non Touchscreen, Recording, Auto Dimming, OSD Lock, Speaker, Aluminum Housing, Sun Shield, Custom Triggers, Power Harness, 6p mini-din, Cradle Mount, NTSC/PAL

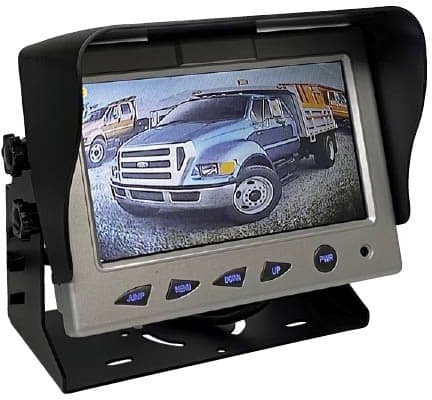

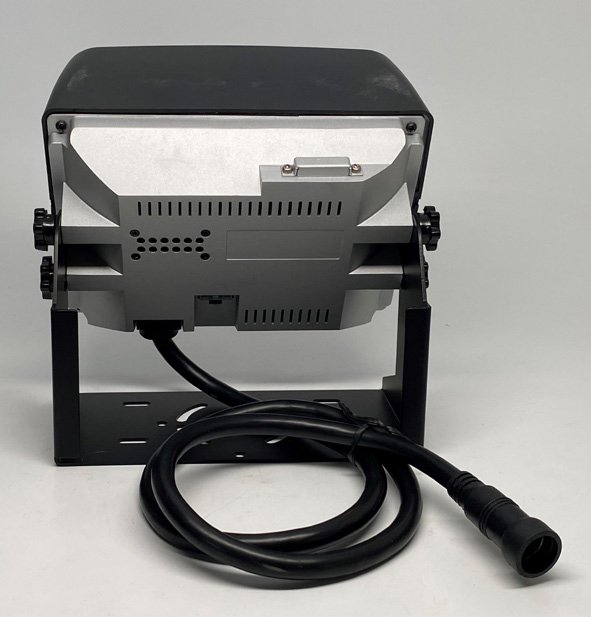

SmarTruckHD 7" TFT Active Matrix Color, LED Backlight, CVBS, 5 Port, Quad Viewing, Non Touchscreen, Recording, Auto Dimming, OSD Lock, Speaker, Aluminum Housing, Sun Shield, Custom Triggers, Power Harness, 6p mini-din, Cradle Mount, NTSC/PAL

M675Q

Monitors Overstock
7" TFT Active Matrix Color, LED Backlight, CVBS, 5 Port, Quad Viewing, Non Touchscreen, Recording, Auto Dimming, OSD Lock, Speaker, Aluminum Housing, Sun Shield, Custom Triggers, 6p mini-din, Cradle Mount, NTSC/PAL, Power Harness included with Monitor

The M675Q replaces the following parts:

MT036
$86100
Product Specifications
Download PDF
Monitor Part No.
M675Q
Description
7" Quad Color Monitor 16:9
Display Method
TFT Active Matrix System
Active Area
154.08 (W) * 87.05 (H) mm
Resolution (dot)
1440(H) * 234(V)= 336960 (dots)
Back Light
LED Type
Brightness
300cd/m2
Contrast Ratio
400
View Angle Range (Left)
65 degrees
View Angle Range (Right)
65 degrees
View Angle Range (Top)
40 degrees
View Angle Range (Down)
65 degrees
Operating Temperature
(-20°C ~ +70°C)
Storage Temperature
(-30°C ~ +85°C)
Power Input Consumption
DC+ 10V ~ 36V <1500mA
Video System
NTSC / PAL / SECAM System
Video Input / Output
Composite video signal 1Vp-p 75Ω
Remote Control
IR Wireless OSD Remote Control
Touch Panel Control
X 1 OSD Touch Control (Option)
Dimmer Control
x1 OFF / 1 ~ 9
Support Picture
x4 Single / Dual / Triple / QUAD
AV Input
x1 (RCA JACK)
AV Output
x1 (RCA JACK)
SPK Output
x1 (1W)
Camera Connector
6Pminidin
Camera Inputs
x4 Camera
DVR Input / Output
x1 SD CARD (Option)
Overall Dimensions
192mm x 140mm x 52mm
Weight
2200(g)
Safety
FCC / CE / E13
Product specifications subject to change on 60-day notice.
Features
  • High Resolution Crystal Clear Display
  • Advanced OSD Menu for easy navigation
  • Supports up to 4 Cameras w/ waterproof connectors
  • Extra RCA input for multimedia while parking (GPS, External DVD)
  • Provides 1 Video / 1 Audio Signal Output
  • Supports Single / Dual / Triple / QUAD viewing options
  • OSD Control for Individual Normal/Mirror Camera Image
  • Auto power on when making back / left / right / front turn
  • Support 10V ~ 36V DC Power Supply
  • Auto Detection for NTSC / PAL / SECAM System
  • Dimmer Control
  • Built-in DVR System (SD Card type)
  • Professional Metal Case with Certified Anti-Shock Design up to 10G
  • “Auto Sense Technology” adds and removes cameras for faster installation
  • Motion Detection Surveillance while vehicle in idle mode
  • Extra Shielded Cabling to prevent: Electrical, Engine, and RF Interference
