M274QZ

Monitors

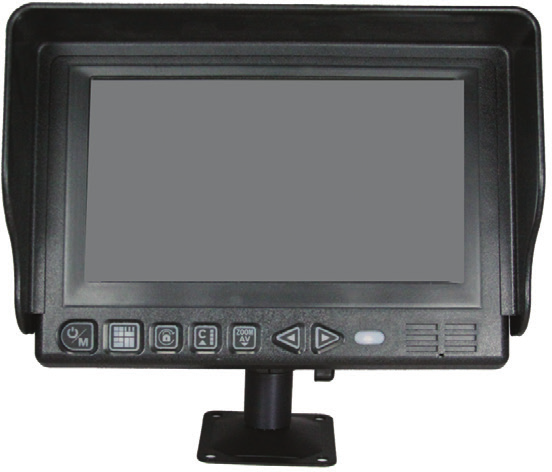

The SmarTruck HD Part No M274QZ (Ultra Heavy Duty) waterproof (IP65) monitor is designed for rugged applications that require a 7-inch, 4-camera display. The monitor has multiple camera display modes that include, single camera, split-screens, tri-view, quad mode and PIP modes. The LED back-lit screen delivers bright, crystal clear, high-resolution video and has been tested for temperatures ranging from -40F to +212F. Additional features include: anti- glare protective screen cover, sun shield, back-lit buttons, adjustable rear scale line, adjustable dimmer, selectable camera names and a heavy-duty AMPS mounting system. This monitor includes: a power harness, sun visor, AMP's Mount and is protected by our Standard 5-Year Warranty.

The M274QZ replaces the following parts:

MT002 MT028 RVHD-STM704QHDDZM STM704QHDDZM
$75173
Product Specifications
Download PDF
Part Number
M274QZ
Video System
NTSC / PAL
LCD Panel Size
7 Inch
Resolution
800 x (RGB) x 480
LCD Brightness
450cd/m²
Screen Mode
16:9
LCD View Angle
40° (top), 60° (Bottom), 60° (Left), 60° (Right)
Color Configuration
RGB Stripe
LCD Dimmer
Automatic
Number Of Camera
Inputs 4 Channel
Number Of Triggers
4
Multi-Display Mode
Mirror/Normal/QUAD/ Split/Triple/PIP
Normal/Mirror
4 Channel
Audio Input
1 Channel
Audio Output
1W Mono Speaker
External Video Input
1 Channel
Speaker Impedance
8 ohm
Camera Connector
4PinMiniDIN
On-Screen Display (OSD)
8 Multi-Language support
Operating Voltage
DC12~48V / Automatic Power On/Off by ACC
Operating Temperature
-40°C ~ 85°C, -40°F ~ 185°F
Storage Temperature
-40°C ~ 90°C, -60°F ~ 194°F
Power Consumption
6 Watts Max.
Dimensions
200(W) x 138(D) x 30(H) mm
Weight
600g
IP Rating
IP65
Vibration Rating
20G
Certificated
FCC
Product specifications subject to change on 60-day notice.
Features
  • Heavy Duty Polymer Housing
  • 20G Vibration Rating
  • 150G Shock Rating
  • Multiple Split-Screen Options
  • Digital High Resolution 337,000K Pixel Picture
  • Adjustable On-Screen Distance Marker (Patent Pending)
  • Accepts Up to 4 Cameras, plus A/V input and output
  • LED Backlit, Anti-Glare LCD
  • IP65 High Pressure Waterproof/Dustproof
  • Built-in Surge Protector
  • Back-lit Control Buttons
  • AMPS Mounting-System compatible
